Osburn 1800 Wood Stove Parts OB01811
Osburn 1800 Wood Stove Parts OB01811
Call to hear about our SALE! (516)974-9742
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Order Online or Call to Order over the Phone
Couldn't load pickup availability
Share

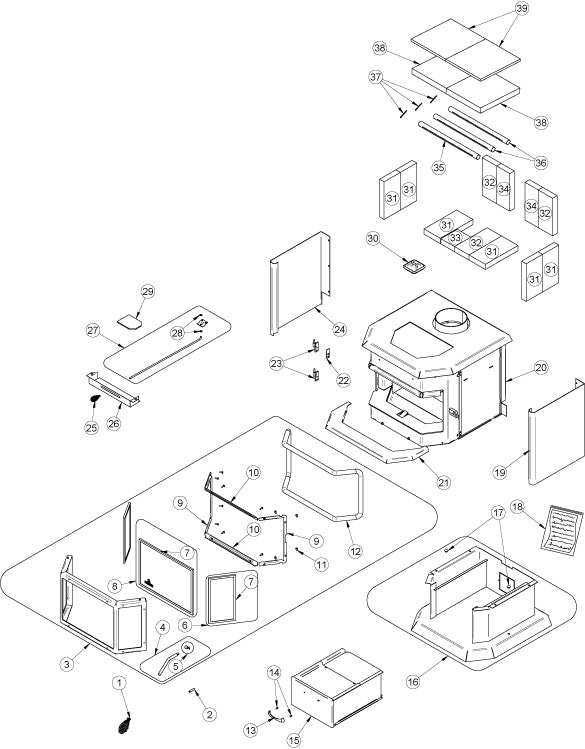

Serial number 801518 and more. Osburn 1800 Wood Stove Parts Diagram. Select the image number for the part you would like to order from option menu on the top right side of this page. If you need any help, please call 516 974 9742 AC07868 1/2 " BLACK COIL HANDLE, 2 30112 SPRING PIN 5/16"x1 3/8", 3 SE37150 DOOR ASSEMBLY WITHOUT OVERLAY, 4 AC26005 DOOR HANDLE AND LATCH KIT, 5 AC09185 DOOR LATCH KIT, 6 SE37154 5 3/8''x10 13/16" REPLACEMENT GLASS WITH GASKET, 7 AC06400 BLACK SELF-ADHESIVE GLASS GASKET KIT (6'), 8 SE37155 REMPLACEMENT GLASS WITH GASKET 14 3/4''x10 13/16'', 9 PL37151 RIGHT OR LEFT GLASS RETAINER, 10 PL37134 FACEPLATE RIGHT SIDE 32"x44", 11 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD, 12 OA11390 SILICONE & DOOR GASKET REPLACEMENT KIT 7/8" (8 FEET), 13 28062 BLACK DRAWER HANDLE 3 25/32", 14 30108 MECHANICAL SCREW M4x8MM PAN PHILLIPS ZINC, 15 SE37037 PEDESTAL ASH DRAWER, 17 30418 FINISHING PLUG 3/8", 18 SE45059 INSTRUCTION MANUAL, 19 PL37018 RIGHT DECORATIVE PANEL, 21 PL37025 ASH SHELF, 22 PL35056 SHIM, 23 SE35021 HINGE ASSEMBLY, 24 PL37019 LEFT DECORATIVE PANEL, 25 AC07866 1/4 " BLACK COIL HANDLE, 26 PL37029 AIR CONTROL COVER, 27 SE34024 AIR CONTROL ROD ASSEMBLY, 28 30063 1/4" ID PUSHNUT, 29 SE37035 AIR CONTROL PLATE, 30 SE16059 ASH DUMP PLUG, 31 29001 4''x8''x1 1/4'' REFRATORY BRICK HD, 32 29011 4''x9"x1 1/4" REFRACTORY BRICK HD, 33 VP00016 3 1/2''x4''x1 1/4'' REFRACTORY BRICK, 34 PL36027 3"x9"x1 1/4'' REFRACTORY BRICK, 35 PL37031 FRONT SECONDARY AIR TUBE, 36 PL37030 REAR AND MIDDLE SECONDARY AIR TUBE, 37 30068 STAINLESS STEEL COTTER PIN 1/8"x1 1/2", 38 21295 C-CAST BAFFLE 10 7/8"x9 7/16"x1 1/4", 39 PL37027 1"x9 5/8"x1/2" RIGID BAFFLE INSULATION
