Osburn 3500 Wood Insert Parts OB3510

Osburn 3500 Wood Insert Parts OB3510

Call to hear about our SALE! (516)974-9742

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Order Online or Call to Order over the Phone

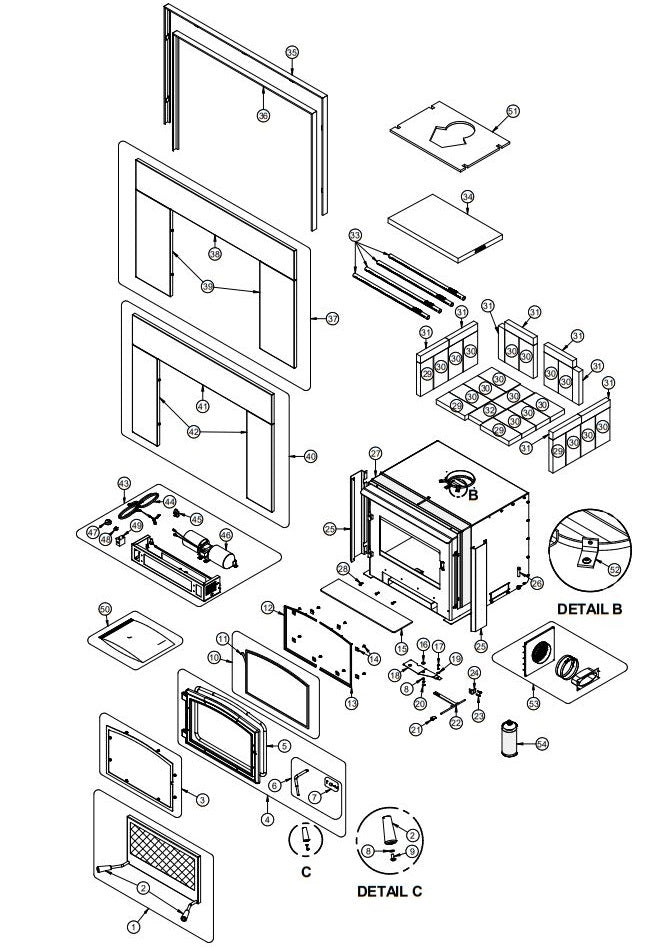

Please review the parts diagram for the 3500 Wood Fireplace Insert OB03510 and make your selection by using the drop down option menu at the top right of the page. If you have any questions please call (516) 974 9742.AC01281 RIGID FIRESCREEN, 2 30898 ROUND WOODEN BLACK HANDLE, 3 OA10163 BLACK DOOR OVERLAY, 4 SE24297 OSBURN 3500 DOOR ASSEMBLY, 5 AC06500 SILICONE AND 5/8"x8' BLACK DOOR GASKET KIT, 6 SE65024 REPLACEMENT HANDLE WITH LATCH KIT, 7 AC09185 DOOR LATCH KIT, 8 30187 STAINLESS WASHER ID 17/64"xOD 1/2", 9 30025 1/4-20x1/2" PAN-HEAD QUADREX BLACK SCREW, 10 SE70902 OSBURN DOOR GLASS 19 5/8''Wx11 5/8''Hx12 11/16''H, 11 AC06400 3/4" (FLAT)x6' BLACK SELF-ADHESIVE GLASS GASKET, 12 PL70815 RIGHT GLASS FRAME, 13 PL70814 RIGHT GLASS FRAME, 14 SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS), 15 SE70933 ASH LIP ASSEMBLY, 16 30206 ZINC WASHER 5/16"IDx3/4"OD, 17 30064 3/16"x1" CLEVIS PIN, 18 PL70921 AIR CONTROL DAMPER, 19 30059 5/32" ID PUSHNUT, 20 30506 SCREW PAN TORX TYPE F 1/4-20x1" BLACK, 21 30102 1/4'' CAST IRON AIR CONTROL HANDLE, 22 SE70920 AIR CONTROL ROD ASSEMBLY, 23 30160 METAL SCREW #8x¾" QUADREX SELF TAPPING TEK, 24 PL65562 AIR CONTRÔL DAMPER GUIDE, 25 PL70937 RIGHT OR LEFT DECORATIVE SIDE PANEL, 26 30337 SQUARE HEAD SET SCREW 1/2-13x1-3/4", 27 PL70939 FACEPLATE EXTENSION, 28 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20x3/4", 29 29011 4''x9"x1 1/4" REFRACTORY BRICK HD, 30 29020 4 1/2''x9''x1 1/4'' REFRACTORY BRICK HD, 31 PL36056 2"x9" 1 1/4" REFRACTORY BRICK, 32 PL36910 4 1/2''x7 1/4''x1 1/4'' REFRACTORY BRICK HD, 33 PL70864 SECONDARY AIR TUBE, 34 21565 C-CAST 3.5 SERIE BAFFLE 22"x14"x1 1/4", 35 OA10128 BLACK LARGE FACEPLATE TRIM KIT (32"x50"), 36 OA10125 BLACK FACEPLATE TRIM KIT (32"x44"), 37 OA10033 LARGE FACEPLATE (32"x50"), 38 PL70943 FACEPLATE TOP PANNEL 32"x50", 39 PL70944 FACEPLATE SIDE PANNEL 32"x50", 40 OA10032 MEDIUM FACEPLATE (32"x44"), 41 PL70942 FACEPLATE TOP PANNEL 32"x44", 42 PL70941 FACEPLATE SIDE PANNEL 32"x44", 43 SE18286 BLOWER ASSEMBLY, 44 60013 POWER CORD 96"x18-3, 45 44028 CERAMIC THERMODISC F110-20F, 46 44089 DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A, 47 44085 RHEOSTAT KNOB, 48 44087 RHEOSTAT NUT, 49 44080 RHEOSTAT WITHOUT NUT, 50 SE46180 OSBURN 3500 INSERT INSTRUCTION MANUAL KIT, 51 21564 C-CAST 3.5 SERIE INSULATION TOP, 52 PL34052 LINER FIXATION BRACKET, 53 AC01298 5" FRESH AIR INTAKE KIT, 54 AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
