Osburn 45 Hybrid Pellet Stove Parts OP00048

Osburn 45 Hybrid Pellet Stove Parts OP00048

Call to hear about our SALE! (516)974-9742

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Order Online or Call to Order over the Phone

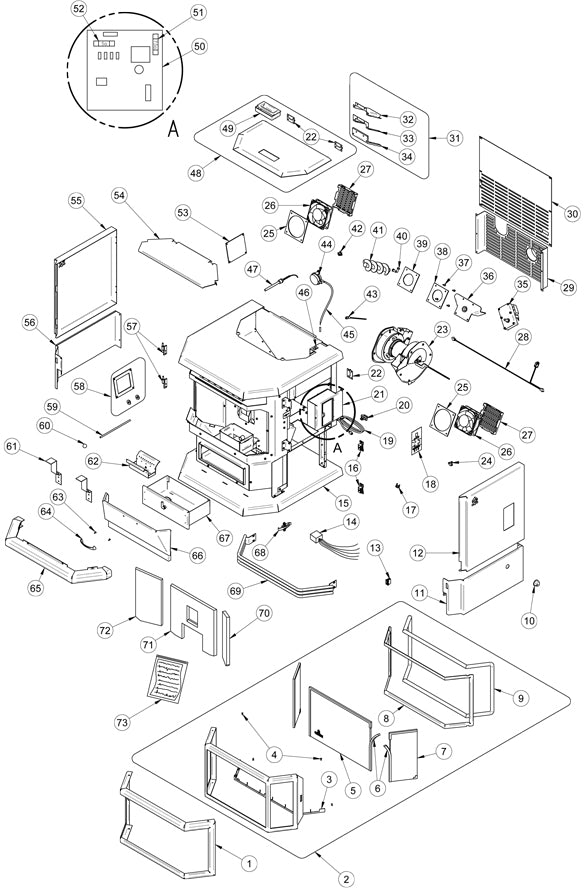

Serial numbers 1601 - 2358. Hybrid Pellet Stove Parts. Look at the parts diagram for the Hybrid 45 Pellet Stove and select the image number for the part you would like to order from drop down option menu on the top right side of this page. If you need any help, please call (516) 974 9742.OA10140 BLACK DOOR OVERLAY, 1 OA10145 GOLD DOOR OVERLAY, 1 OA10150 BRUSHED NICKEL DOOR OVERLAY, 2 SE52555 DOOR ASSEMBLY WITH GLASS AND GASKET, 3 PL52553 GLASS AIR WASH TRIM, 4 30021 SELF TAPPING SCREW 8-32 "F" TYPEx7/16" FLAT HEAD PHILLIPS, 5 SE52709 REPLACEMETN GLASS WITH GASKET 12"x17 ½", 6 AC06400 BLACK SELF-ADHESIVE GLASS GASKET KIT (6'), 7 SE52710 REPLACEMENT GLASS WITH GASKET 5 3/4"x12", 8 PL52552 GLASS RETAINER FRAME, 9 OA11390 SILICONE & DOOR GASKET REPLACEMENT KIT 7/8" (8 FEET), 10 60015 CONTROL KNOB, 11 PL52505 RIGHT SIDE OF PEDESTAL, 12 PL52513 RIGHT SIDE DECORATIVE PANEL, 13 30368 ALUMINUM SINGLE MAGNET, 14 60286 WIRE HARNESS 45 SERIE VERSION 3, 15 PL52503, 16 30454 DOUBLE MAGNET, 17 44058 THERMODISC 36T12 F160, 18 44148 MEMBRANE SWITCH CONTROL BOARD, 19 60013 POWER CORD 96"x18-3, 20 60036 THERMOSTAT TERMINAL, 21 SE52680 PC BOARD ASSEMBLY, 22 30013 HINGE 2"x1-1/2", 23 SE44039 COMBEX BLOWER 120 VOLTS 45 SERIE, 24 44041 THERMODISC L250F MANUAL RESET 36T16, 25 21177 CONVECTION FAN GASKET, 26 44100 TUBEAXIAL BLOWER 115V-60HZ-18W, 27 PL49048 FINGER GUARD FILTER SUPPORT, 28 60281 CONVECTION FAN WIRING 35 ET 45 SERIE, 29 SE52576 REAR PEDESTAL PANEL, 30 PL52527 UPPER BACK PLATE, 31 SE52597 HOPPER HEAT SHEILD, 34 21192 HOPPER HEAT SHIELD INSULATION 45 SERIE, 35 44038 AUGER GEAR MOTOR 1 RPM, 36 PL52516 AUGER SUPPORT, 37 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD, 38 21110 AUGER PLATE GASKET, 40 30092 BOLT 5/16''-18x3/4" HEX GRADE 5, 41 24017 AUGER FOR 35 AND 45 SERIE, 42 44059 THERMODISC 36T11 L250-25 AUTOMATIC, 43 44095 THERMISTOR, 44 44029 PRESSURE SWITCH, 45 49004 PRESSURE SWITCH HOSE, 46 44098 HOPPER LID SAFETY SWITCH, 47 SE44132, 48 SE52520 OSBURN 45 HOPPER LID, 49 30527 HOPPER LID PLASTIC HANDLE, 50 44064 CONTROL BOARD 45 SERIE (VERSION 2), 51 44013 FUSE 7.5A / 250V / 1/4" DIA.x1 1/4'' LONG, 52 44015 FUSE 5A / 250V / 1/4" DIA.x1 1/4'' LONG, 53 PL52564 EXHAUST ACCESS PANEL FOR MAINTENANCE, 54 PL52507 BAFFLE HYBRID 45, 55 PL52512 LEFT SIDE DECORATIVE PANEL, 56 PL52506 LEFT SIDE OF PEDESTAL, 57 SE35021 HINGE ASSEMBLY, 58 AC09189 MAINTENANCE GASKET KIT, 59 30546 THREADED HEAT EXCHANGER ROD 45 SERIE, 60 30562 3/4"x1/4''-20 ROUND HANDLE FOR EXCHANGER ROD, 61 PL52582 LOG SUPPORT OSBURN 45, 62 SE52545 PELLET BURN POT ASSEMBLY 45 SERIE, 63 30108 MECHANICAL SCREW M4x8MM PAN PHILLIPS ZINC, 64 28062 BLACK DRAWER HANDLE 3 25/32", 65 PL41016 DECORATIVE ASH TRAY, 66 SE52508 ASH DRAWER ACCESS DOOR, 67 SE52523 OSBURN 45 ASH DRAWER, 68 30439 TENSION CLAMP, 69 OA10170 BLACK TRIM KIT, 69 OA10172 GOLD PLATED TRIM KIT, 69 OA10174 NICKEL TRIM KIT, 70 21115 RH SIDE DECORATIVE PANEL, 71 21116 MIDDLE DECORATIVE PANEL, 72 21114 LH SIDE DECORATIVE PANEL, 73 SE45165 OWNER MANUAL OSBURN PELLET STOVE
