Osburn 950 Wood Stove Parts OB00950
Osburn 950 Wood Stove Parts OB00950
Call to hear about our SALE! (516)974-9742
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Share

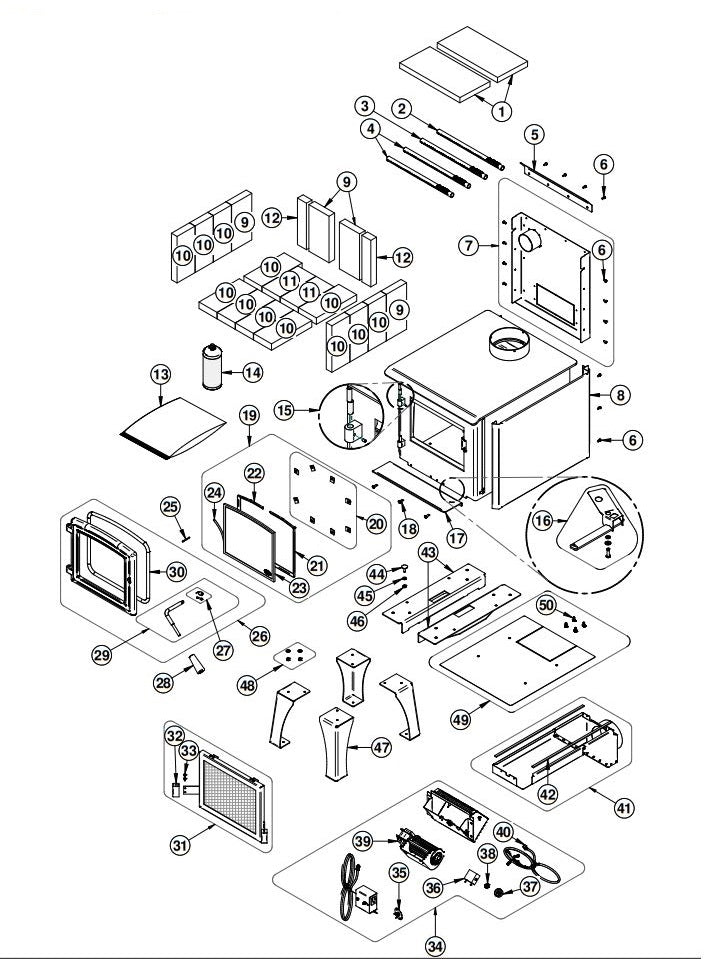

Look at the parts diagram for the Osburn 950 Wood Stove OB0900 and select the image number for the part you would like to order from option menu on the top right side of this page. If you need any help, please call (516) 974 9742. 21631 C-CAST BAFFLE 13 7/16''x6 3/4''x1'', 2 PL66833 REAR SECONDARY AIR TUBE, 3 PL66834 REAR CENTER SECONDARY AIR TUBE, 4 PL66835 FRONT AND CENTER SECONDARY AIR TUBE, 5 PL74264 AIR DEFLECTOR, 6 30154 BLACK SCREW #10x5/8" ROBERTSON TYPE A 1 , 7 SE74262 BACK HEAT SHIELD ASSEMBLY, 8 PL74297 DECORATIVE PANEL, 9 29020 4 1/2''x9''x1 1/4'' REFRACTORY BRICK HD, 10 29011 4''x9"x1 1/4" REFRACTORY BRICK HD 1 , 11 29001 4''x8''x1 1/4'' REFRATORY BRICK HD, 12 PL36056 2"x9" 1 1/4" REFRACTORY BRICK, 13 SE46262 OB00950 INSTRUCTION MANUAL KIT, 14 AC05959 METALLIC BLACK STOVE PAINT AEROSOL, 15 SE74167 DOOR HINGE REPLACEMENT KIT, 16 SE74366 ASSEMBLY AIR CONTROL HATCH KIT, 17 PL74343 ASH DRAWER, 18 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20x3/4", 19 SE74367 OSBURN 950 GLASS, GASKET AND MOLDING KIT, 20 SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS), 21 PL74345 RIGHT GLASS FRAME, 22 PL74346 LEFT GLASS FRAME, 23 SE74340 GLASS WITH GASKET 11 13/16''x9 7/8'', 24 AC06400 3/4"x6' FLAT BLACK SELF-ADHESIVE GLASS GASKET, 25 30101 SPRING TENSION PIN 5/32"DIA x1 1/2"L, 26 SE24351 CAST IRON DOOR WITH HANDLE AND GASKET, 27 AC09185 DOOR LATCH KIT, 28 30898 ROUND WOODEN BLACK HANDLE, 29 SE65018 REPLACEMENT HANDLE WITH LATCH KIT, 30 AC06500 SILICONE AND 5/8"x8' BLACK DOOR GASKET KIT, 31 AC01420 RIGID FIRESCREEN, 32 PL06728 AIR CONTROL HANDLE, 33 30129 METAL SCREW #10x1/2" PAN QUADREX ZINC "A" TYPE, 34 AC02023 BLOWER WITH THERMODISC, 35 44028 CERAMIC THERMODISC F110-20F, 36 44080 RHEOSTAT WITHOUT NUT, 37 44085 RHEOSTAT KNOB, 38 44087 RHEOSTAT NUT, 39 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM, 40 60013 POWER CORD 96"x18-3, 41 AC01421 5"DIA FRESH AIR INTAKE KIT FOR WOOD STOVE ON LEGS, 42 AC06810 SELF ADHESIVE BLACK GASKET KIT 1/8"x3/8"x6', 43 PL74355 LEG SUPPORT, 44 30536 LEVELING BOLT 1/4 - 20x1'', 45 30185 17/64" "AA" TYPE WASHER, 46 30100 BLACK HEX NUT 1/4 - 20, 47 PL74337 OSBURN 1.4 LEG, 48 30141 LEG KIT HARDWARE BAG, 49 SE74368 BOTTOM HEAT SHIELD KIT, 50 30060 THREAD-CUTTING SCREW 1/4-20x1/2" F HEX STEEL SLOT WASHER C102 ZINC
View full details
