Osburn Horizon Wood Fireplace Parts OB04010

Osburn Horizon Wood Fireplace Parts OB04010

Call to hear about our SALE! (516)974-9742

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Order Online or Call to Order over the Phone

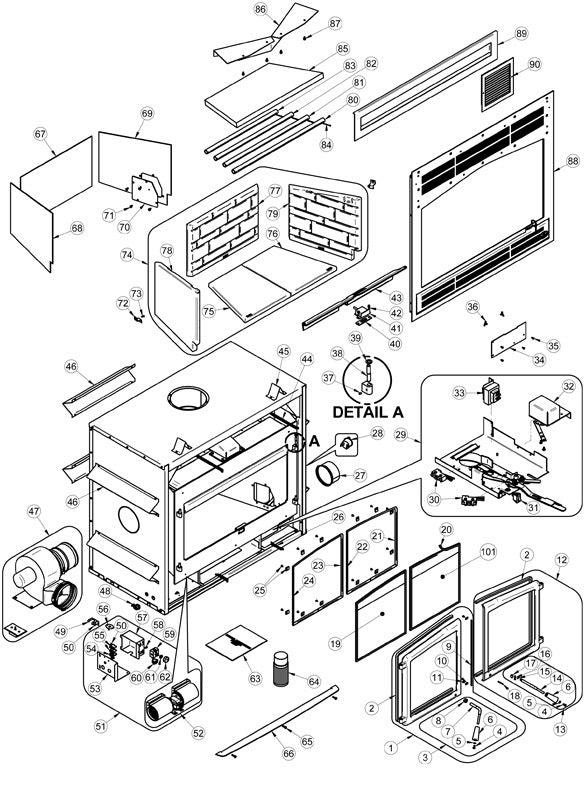

Please review the parts diagram for the Horizon Wood Fireplace and make your selection by using the drop down option menu at the top right of the page. If you have any questions please call (516) 974 9742. 1 SE24198 LEFT DOOR FRAME WITH HANDLE AND GASKET, 2 AC06500 SILICONE AND 5/8" X 8' BLACK GASKET KIT, 3 SE68960 LEFT HANDLE AND LATCH KIT, 4 30025 1/4-20 X 1/2" PAN QUAD BLACK SCREW, 5 30187 ZINC WASHER ID 17/64" X OD 1/2", 6 30898 ROUND WOODEN BLACK HANDLE, 7 PL68960 LEFT HANDLE DOOR, 8 30039 NUT 1/2-20, 9 40030 ROUND 1/4" ROPE WITH ADHESIVE, 10 PL61410 GASKET RETAINER, 11 30124 SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC, 12 SE24199 RIGHT DOOR FRAME WITH HANDLE AND GASKET, 13 SE68961 RIGHT HANDLE AND LATCH KIT, 14 PL68961 RIGHT DOOR HANDLE, 15 30062 SPRING PIN 3/32" X 1/2", 16 30043 CLEVIS PIN 3/16" X 7/8'', 17 8435-08 BLACK OXIDE LATCH MECHANISM BEARING, 18 30101 SPRING TENSION PIN 5/32" DIA X 1 1/2" L, 19 23062 HE350 LEFT SIDE ROBAX GLASS, 20 AC06400 BLACK SELF-ADHESIVE GLASS GASKET (6'), 21 PL68892 RIGHT GLASS FRAME, 22 PL68899 RIGHT GLASS FRAME, 23 PL68895 LEFT GLASS FRAME, 24 PL68893 LEFT GLASS FRAME, 25 SE53585 GLASS RETAINER KIT WITH SCREWS (12 PER KIT), 26 30472 SPRING 1/2'' OUTSIDE DIA. X 3'' LONG, 27 PL68915 ADAPTER 5", 28 44058 THERMODISC 36T12 F160, 29 SE68877 AIR CONTROL MECHANISM ASSEMBLY, 30 44190 LIMIT SWITCH, 31 44091 ROCKER SWITCH 2 POSITION MSR-8, 32 51000 HONEYWELL 24V DAMPER MOTOR, 33 60208 TRANSFORMER 120 V/24 V 20 VA, 34 PL68781 AIR INLET PLATE, 35 30131 BLACK METAL SCREW #10 X 1/2" TYPE "A" PAN QUADREX, 36 30485 WING NUT 1/4-20 X 1/2'' ZINC PLATTED, 37 30117 SOCKET SET SCREW #10-32 X 1/4", 38 30586 HINGE PIN, 39 30203 FLAT WASHER .682" OD X .390" ID BRASS, 40 21490 PILOT INSULATION, 41 SE68758 PILOT ASSEMBLY, 42 30094 HEX SCREW WASHER HEAD 1/4-20 X 3/4" F ZINC TYPE, 43 PL68759 INNER ASH RETAINER, 44 30767 SPRING 1/2'' OUTSIDE DIA. X 8'' LONG, 45 PL60266 LONG TOP STANDOFF, 46 PL68952 SIDE STANDOFF, 47 VA4460 FORCED AIR KIT, 48 60201 CONNECTOR 1 SCREW 3/8" FOR BX WIRE, 49 PL66523 THERMODISC SUPPORT, 50 30133 METAL SCREW #8 X 3/8" PAN QUADREX TYPE "A" ZINC, 51 SE68951 WIRED ELECTRICAL PARTS WITH JUNCTION BOX, 52 44122 DOUBLE CAGE BLOWER 120 CFM, 53 PL68950 JUNCTION BOX COVER, 54 60204B TERMINAL BLOCK (END SECTION), 55 60204A TERMINAL 3/8" SECTION, 56 44046 THERMODISC F110-20F, 57 PL68951 CONNECTOR BLOCK CASE, 58 30154 BLACK SCREW #10 X 5/8" ROBERTSON TYPE A, 59 44080 RHEOSTAT WITH NUT, 60 44091 ROCKER SWITCH 2 POSITION MSR-8, 61 44087 RHEOSTAT NUT, 62 44085 RHEOSTAT KNOB, 63 SE45857 HORIZON OWNER'S MANUAL KIT, 64 AC05959 METALLIC BLACK STOVE PAINT - 342 G (12OZ) AEROSOL, 65 30506 SCREW PAN TORX TYPE F 1/4-20 X 1" BLACK, 66 PL68839 DÉCORATIVE ASH LIP, 67 21463 REAR COMBUSTION CHAMBER INSULATION, 68 21464 LEFT COMBUSTION CHAMBER INSULATION, 69 21465 RIGHT COMBUSTION CHAMBER INSULATION, 70 PL68873 THERMODISC ACCESS, 71 30084 NUT 1/4-20 X 1/2" GRADE 5, 72 PL53145 REFRACTORY SLAB RETAINER, 73 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD, 74 AC02360 CLASSIC MOULDED REFRACTORY BRICK PANELS, 75 22025 LEFT FLOOR REFRACTORY, 76 22026 RIGHT FLOOR REFRACTORY, 77 22027 REAR REFRACTORY, 78 22028 LEFT REFRACTORY, 79 22029 RIGHT REFRACTORY, 80 PL68762 FRONT SECONDARY AIR TUBE, 81 PL68763 CENTER FRONT SECONDARY AIR TUBE, 82 PL68764 REAR SECONDARY AIR TUBE, 83 PL68765 CENTER SECONDARY AIR TUBE, 84 30068 STAINLESS STEEL COTTER PIN 1/8" X 1 1/2", 85 21265 BAFFLE (C-CAST), 86 PL68850 BAFFLE DEFLECTOR, 87 30060 THREAD-CUTTING SCREW 1/4-20 X 1/2" F HEX STEEL SLOT WASHER C102 ZINC, 88 OA10630 PRAIRIE STYLE FACEPLATE, 89 AC01378 WARM AIR CIRCULATION GRILLE - MODERN STYLE, 90 30540 HOT AIR GRAVITY DISTRIBUTION KIT GRILL
