Osburn Matrix Wood Stove Parts OB02032

Osburn Matrix Wood Stove Parts OB02032

Call to hear about our SALE! (516)974-9742

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Order Online or Call to Order over the Phone

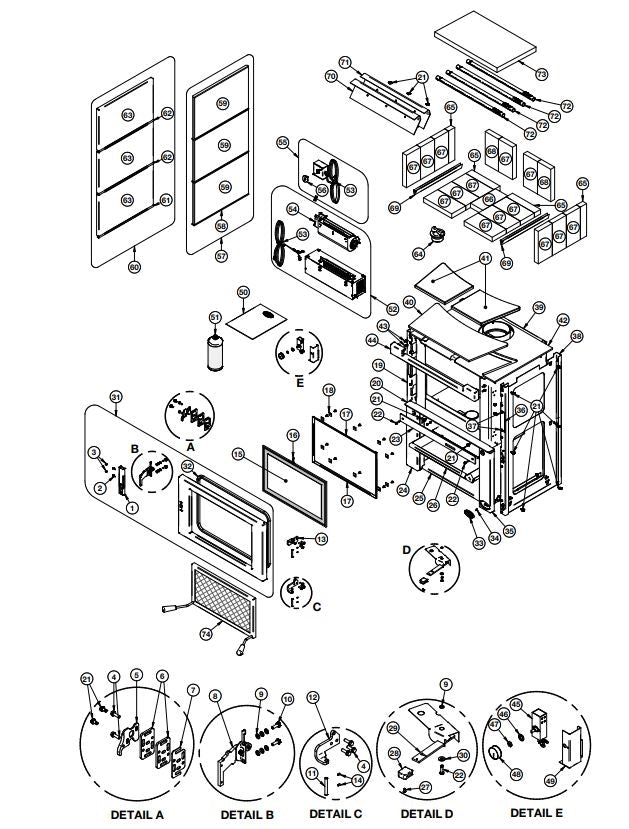

Please review the parts diagram for the Matrix Wood Stove with blower OB02032 and make your selection by using the drop down option menu at the top right of the page. If you have any questions please call (516) 974 9742. 30765 WOODEN DOOR HANDLE, 2 30123 SCREW #8 - 32x5/8'' PAN QUADREX ZINC, 3 30766 WOODEN CAP HANDLE, 4 30094 HEX SCREW WASHER HEAD 1/4-20x3/4" F ZINC TYPE, 5 PL65153 DOOR LOCK, 6 PL65075 LATCH SHIM, 7 PL65035 DOOR LOCK SPACER, 8 SE65082 LEFT HANDLE ASSEMBLY, 9 30187 STAINLESS WASHER ID 17/64"xOD 1/2", 10 30084 NUT 1/4-20x1/2" GRADE 5, 11 30755 DOWEL PIN 1/4"x2", 12 PL65615 HINGE, 13 PL65614 DOOR HINGE, 14 30117 SOCKET SET SCREW #10-32x1/4", 15 SE23051 GLASS WITH GASKET - 20 1/4"Wx12 1/2"H, 16 AC06400 3/4" (FLAT)x6' BLACK SELF-ADHESIVE GLASS GASKET, 17 PL65646 GLASS FRAME, 18 SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS), 19 SE65657 RIGHT DECORATIVE PANEL ATTACHMENT FRAME, 20 SE65658 ASH LIP SUPPORT, 21 30060 THREAD-CUTTING SCREW 1/4-20x1/2" F HEX STEEL SLOT WASHER C102 ZINC, 22 30506 SCREW PAN TORX TYPE F 1/4-20x1" BLACK, 23 PL65612 AIR CONTROL GUIDE, 24 SE24246 LEFT CAST IRON FRONT BASE FINISH, 25 PL65603 BASE, 26 SE65772 ASH DRAWER, 27 30021 SELF TAPPING SCREW 8-32 "F" TYPEx7/16" FLAT HEAD PHILLIPS BLACK, 28 30764 WOODEN AIR CONTROL HANDLE, 29 SE65832 AIR CONTROL DAMPER ASSEMBLY, 30 30206 ZINC WASHER 5/16"IDx3/4"OD, 31 SE24245-01 CAST IRON DOOR WITH GASKET AND HANDLE, 32 AC06500 SILICONE AND 5/8"x8' BLACK DOOR GASKET KIT, 33 30450 OSBURN DOOR LOGO, 34 30124 SCREW #8 - 32x5/16'' TRUSS QUADREX ZINC, 35 SE24252 RIGHT CAST IRON FRONT BASE FINISH, 36 PL65667 LATCH ACCESS PLATE, 37 31048 SCREW NO 10x1/2 HWH PH TYPE AB BLACK CHROMATE, 38 SE65659 LEFT DECORATIVE PANEL ATTACHMENT FRAME, 39 99999 BUILD TO ORDER, 40 OA10704 BLACK PANEL TOP, 41 OA10703 SOAPSTONE PANEL TOP, 42 SE65647 TOP ASSEMBLY, 43 30025 1/4-20x1/2" PAN-HEAD QUADREX BLACK SCREW, 44 SE24251 CAST IRON DECORATIVE TOP FACING, 45 44084 RHEOSTAT WITH NUT, 46 44203 RHEOSTAT WASHER, 47 44202 RHEOSTAT NUT, 48 44085 RHEOSTAT KNOB, 49 PL65768 RHEOSTAT HOUSING, 50 SE45989 MATRIX INSTRUCTIONS MANUAL KIT, 51 AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL, 52 SE65769 BLOWER ASSEMBLY 115V-60Hz-56W 120PCM, 53 60013 POWER CORD 96"x18-3, 54 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W (B), 55 AC02055 QUICK CONNECT THERMODISC KIT, 56 44028 CERAMIC THERMODISC F110-20F, 57 OA10701 SOAPSTONE SIDE PANELS KIT, 58 PL65668 BOTTOM DECORATIVE TRIM FOR SIDE SOAP STONE, 59 22219 SIDE SOAP STONE, 60 OA10700 BLACK SIDE PANELS KIT, 61 PL65783 BLACK BOTTOM DECORATIVE TRIM FOR PANELS, 62 PL65782 MIDDLE DECORATIVE TRIM BRUSHED NICKEL, 63 PL65655 DECORATIVE SIDE PANEL PAINTED BLACK, 64 24096 ROUND CAST IRON ASH PLUG, 65 PL36056 2"x9" 1 1/4" REFRACTORY BRICK, 66 29001 4''x8 1/8''x1 1/4'' REFRATORY BRICK HD, 67 29020 4 1/2''x9''x1 1/4'' REFRACTORY BRICK HD 1USD $8.00, 68 PL36636 4 1/4"x9''x1 1/4'' REFRACTORY BRICK HD, 69 PL65127 FLOORED BRICK RETAINER, 70 21387 TOP AIR DEFLECTOR INSULATION, 71 PL65505 TOP AIR DEFLECTOR PROTECTOR, 72 PL65514 FRONT SECONDARY AIR TUBE, 73 21389 C-CAST BAFFLE 20"x12 1/2"x1 1/4", 74 AC01315 RIGID FIRESCREEN, 75 SE65246 BEARING HANDLE KIT
