Osburn Wood Stove Parts OB03300
Osburn Wood Stove Parts OB03300
Call to hear about our SALE! (516)974-9742
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Order Online or Call to Order over the Phone
Couldn't load pickup availability
Share

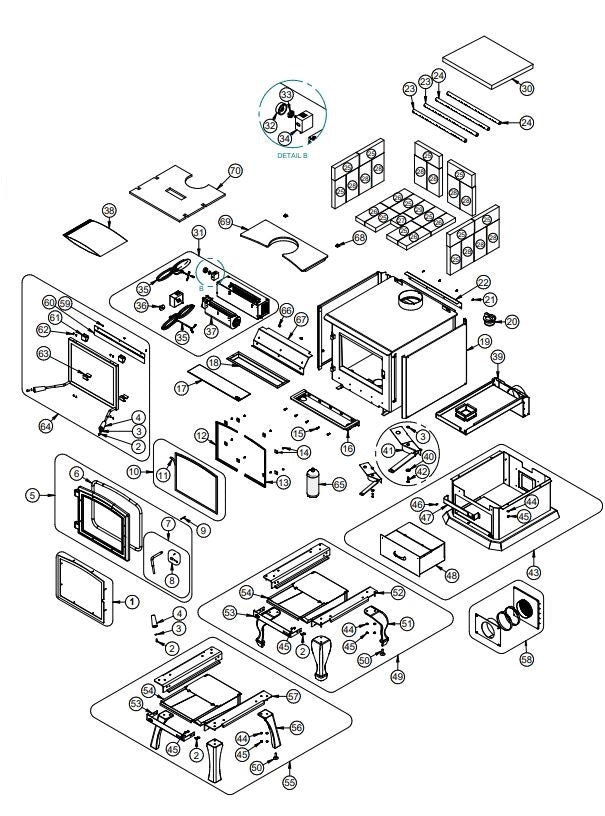

Please review the parts diagram for the Wood Stove with blower OB03300 and make your selection by using the drop down option menu at the top right of the page. If you have any questions please call (516) 974 9742. OA10261 BRUSHED NICKEL DOOR OVERLAY, 1 OA10260 BLACK DOOR OVERLAY, 2 30025 1/4-20x1/2" PAN-HEAD QUADREX BLACK SCREW, 3 30187 STAINLESS WASHER ID 17/64"xOD 1/2", 4 30898 ROUND WOODEN BLACK HANDLE DULL BLACK FINISH, 5 SE24330 CAST IRON DOOR FRAME WITH HANDLE AND GASKET, 6 AC06500 SILICONE AND 5/8"x8' BLACK DOOR GASKET KIT, 7 SE65024 REPLACEMENT HANDLE WITH LATCH KIT, 8 AC09185 DOOR LATCH KIT, 9 30101 SPRING TENSION PIN 5/32"DIAx1 1/2"L, 10 SE72506 ARCHED GLASS WITH GASKET, 11 AC06400 3/4" (FLAT)x6' BLACK SELF-ADHESIVE GLASS GASKET, 12 PL72520 RIGHT GLASS FRAME, 13 PL72521 LEFT GLASS FRAME, 14 SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS), 15 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20x3/4", 16 SE65011 ASH LIP ASSEMBLY, 17 23080 GLASS ASH SHELF, 18 PL65016 ASH LIP PAN, 19 PL72513 DECORATIVE PANEL, 20 24096 ROUND CAST IRON ASH PLUG, 21 30154 BLACK SCREW #10x5/8" ROBERTSON TYPE A, 22 PL72575 AIR DEFLECTOR, 23 PL72516 FRONT OR SECOND SECONDARY AIR TUBE, 24 PL72515 THIRD OR REAR SECONDARY TUBE, 25 29011 4''x9"x1 1/4" REFRACTORY BRICK HD, 26 PL36102 REFRACTORY BRICK 3 1/4"x9'', 27 PL36893 ''x4-1/2''x1-1/4'' HD BRICK, 28 29020 4 1/2''x9''x1 1/4'' REFRACTORY BRICK HD, 29 29001 4''x8 1/8''x1 1/4'' REFRATORY BRICK HD, 30 21595 C-CAST BAFFLE, 31 AC01000 ULTRA-QUIET 130 CFM BLOWER WITH VARIABLE SPEED CONTROL, 32 44085 RHEOSTAT KNOB, 33 44087 RHEOSTAT NUT, 34 44080 RHEOSTAT WITHOUT NUT, 35 60013 POWER CORD 96"x18-3, 36 44028 CERAMIC THERMODISC F110-20F, 37 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W (B), 38 SE46131 OSBURN 3300 INSTRUCTION MANUAL KIT, 39 AC01204 5"DIA FRESH AIR INTAKE KIT FOR WOOD STOVE ON LEGS, 40 30206 ZINC WASHER 5/16"IDx3/4"OD, 41 SE72522 PRIMARY AIR CONTROL DAMPER, 42 30506 SCREW PAN TORX TYPE F 1/4-20x1" BLACK, 43 OA10262 PEDESTAL WITH ASH DRAWER, 44 30185 17/64" "AA" TYPE WASHER, 45 30100 BLACK HEX NUT 1/4 - 20, 46 30131 BLACK METAL SCREW #10x1/2" TYPE "A" PAN QUADREX, 47 PL72570 FRONT DECORATIVE FENDER, 48 SE70558 ASH PAN, 49 OA10265 BRUSHED NICKEL CAST IRON TRADITIONAL LEGS WITH ASH DRAWER, 49 OA10263 BLACK CAST IRON TRADITIONAL LEGS WITH ASH DRAWER, 50 30050 LEVELING BOLT 3/8-16x1 1/2", 51 PL24218 BLACK PAINTED CAST IRON LEG WITH LEVELING BOLT, 51 PL24218-02 NICKEL PLATED CAST IRON LEG WITH LEVELING BOLT, 52 PL72523 LEFT OR RIGHT LEG SUPPORT, 53 PL72524 AIR CONTROL FACING, 54 SE30186 ASH DRAWER FOR OSBURN 2300 ON LEGS, 55 OA10266 BLACK CAST IRON STRAIGHT LEGS WITH ASH DRAWER, 55 OA10264 BRUSHED NICKEL CAST IRON STRAIGHT LEGS WITH ASH DRAWER, 56 24282-01 BRUSH NICKEL PLATED CAST IRON LEG (BLACK PAINT IN THE BACK), 57 PL72510 LEFT OR RIGHT LEG SUPPORT, 58 AC01336 5"DIA FRESH AIR INTAKE KIT FOR WOOD STOVE ON PEDESTAL, 59 30417 BLACK HEX NUT #8-32, 60 SE72582 SMOKE DEFLECTOR, 61 PL72584 LOWER FIRESCREEN HOOK, 62 30021 SELF TAPPING SCREW 8-32 "F" TYPEx7/16" FLAT HEAD PHILLIPS BLACK, 63 PL72074 UPPER FIRESCREEN HOOK, 64 AC01397 RIGID FIRESCREEN, 65 AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL, 66 30060 THREAD-CUTTING SCREW 1/4-20x1/2" F HEX STEEL SLOT WASHER C102 ZINC, 67 PL72506 FLAME DEFLECTOR, 68 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20x3/4", 69 SE70595 AIR MATE, 70 21594 C-CAST TOP INSULATION
